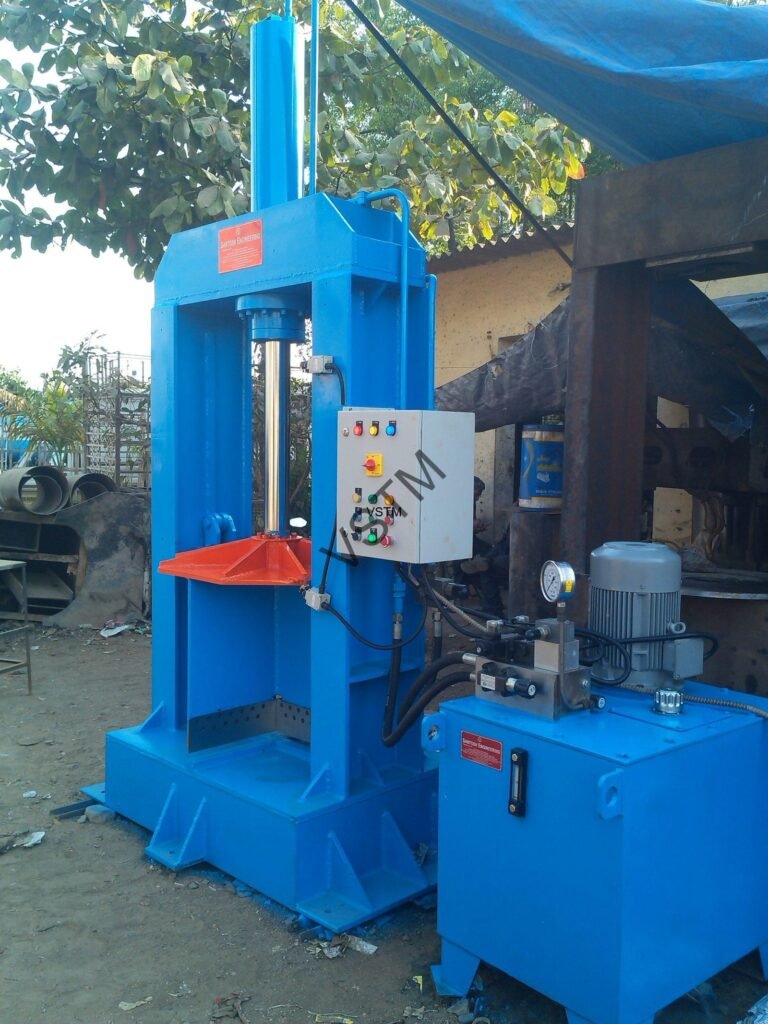

Hydraulic Bale Cutter
Hydraulic bale cutter with ball-type table, pusher unit and feed conveyor for rubber bale cutting.
Machine information
The VS Tyre Machinery Hydraulic Bale Cutter is available in 50-ton and 20-ton configurations. The machine is designed for controlled rubber bale cutting with manual or semi-automatic operation and blade-side safety protection.
Designed around the production task.
Ball type table
Pusher unit
Feed conveyor
Manual / semi-auto operation
Safety cover on blade side
Where this machine fits.
Specifications
| Maximum Force | 50 Ton / 20 Ton |
|---|---|
| Bed Size | 850 × 850 mm / 750 × 750 mm |
| Daylight | 800 mm / 700 mm |
| Cylinder Stroke | 750 mm / 650 mm |
| Working Height | 500 mm / 400 mm |
| Cylinder Bore | 160 mm / 127 mm |
| Piston Rod Diameter | 100 mm / 80 mm |
| Cutting / Fast Approach / Return Speed | 10 / 50 mm |
| Working Pressure | 200 kg/cm² / 180 kg/cm² |
| Motor Capacity | 7.5 HP / 5 HP |
| Mode of Operation | Manual / semi-auto |
| Blade Material | OHNS |
| Hydraulic Pump | POLY HYDRONE / YUKEN |
| Hydraulic Valves | YUKEN / REXTOTH |
| Electrical Parts | SIEMENS / L&T |
Published specifications are a technical reference. Final dimensions, capacity, utilities and configuration should be confirmed for your application before order.
